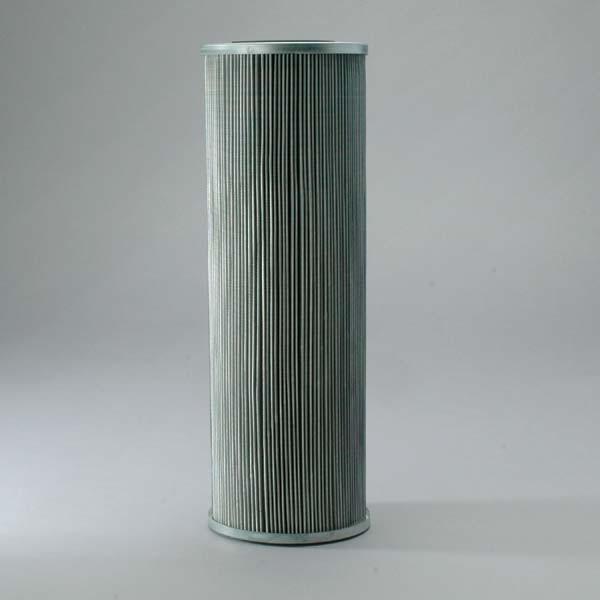

P566710 | Donaldson | Pleated Paper Element | OFS # 97-01-0034

Shipping & Packaging Specifications

Filters Per Carton: 6 (Minimum Order Amount)

Carton Weight:  40.00 LB   (18.14 KG)

Lead Time: Usually ships in 24-48 hours

Shipping Service: UPS Ground

Performance Data
Micron Rating:  0.50 NOMINAL

Beta Rating:  B1/2 = 75

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  6.00 IN   (152.40 MM)

Outer Diameter, Bottom:  6.00 IN   (152.40 MM)

Inner Diameter, Top:  2.63 IN   (66.80 MM)

Inner Diameter, Bottom:  2.63 IN   (66.80 MM)

Length:  36.00 IN   (914.40 MM)

Thread:  NONE

Physical Specifications
Handle:  YES

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  68 SQ.FT.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - SCREEN

Configuration:  DOUBLE OPEN END

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
