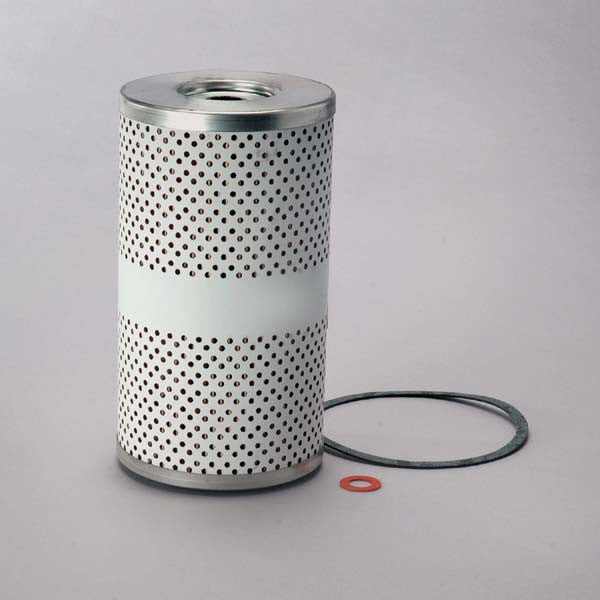

L624F | Luber-Finer | Pleated Paper Filter Element
***Image may vary***

L624F | Luber-Finer | OFS # 97-01-0892

  • $28.99


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  4.33 IN   (109.98 MM)

Outer Diameter, Bottom:  4.33 IN   (109.98 MM)

Inner Diameter, Top:  0.68 IN   (17.27 MM)

Inner Diameter, Bottom:  0.68 IN   (17.27 MM)

Length:  8.69 IN   (220.73 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  1.33 LB   (0.60 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
