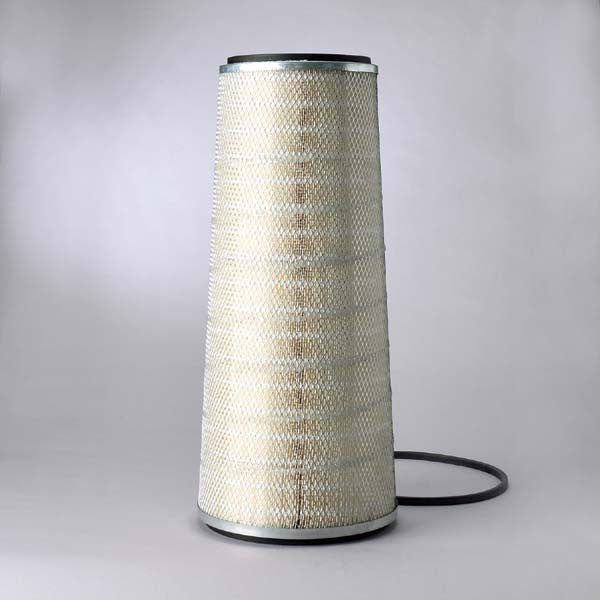

LAF2831 | Luber-Finer | OFS # 97-22-0944
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 12.77 IN (324.36 MM)
Outer Diameter, Bottom: 9.81 IN (249.17 MM)
Inner Diameter, Top: 8.33 IN (211.58 MM)
Inner Diameter, Bottom:
Length: 29.03 IN (737.36 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 14.30 LB (6.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
