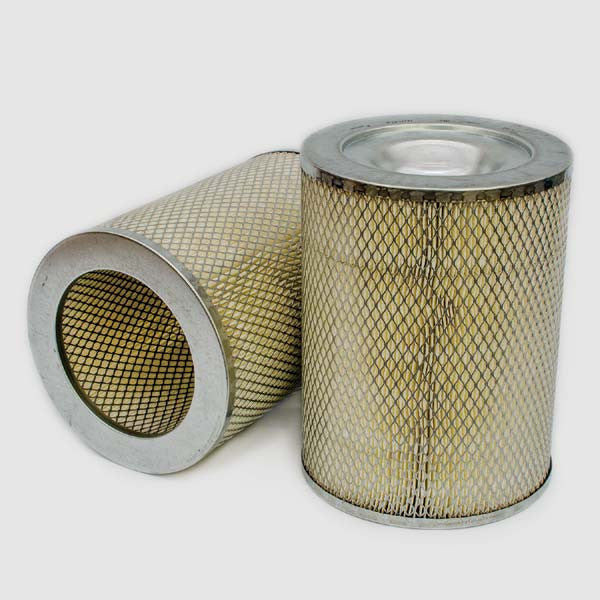

LAF66B | Luber-Finer | OFS # 97-22-0410
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 225 F
Direction of Flow: INSIDE->OUT
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 8.25 IN (209.55 MM)
Outer Diameter, Bottom: 8.25 IN (209.55 MM)
Inner Diameter, Top: 0.50 IN (12.70 MM)
Inner Diameter, Bottom: 5.75 IN (146.05 MM)
Length: 11.00 IN (279.40 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END/BH
Packaging Specifications
Number per Carton: 1
Carton Weight: 4.30 LB (1.95 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
Intake Air Filter Element
