LAF8727 | Luber-Finer | OFS # 97-22-0660
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 13.85 IN (351.79 MM)
Outer Diameter, Bottom: 13.85 IN (351.79 MM)
Inner Diameter, Top: 7.44 IN (188.98 MM)
Inner Diameter, Bottom: 0.67 IN (17.02 MM)
Length: 10.50 IN (266.70 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: MOLDED
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE W BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 9.20 LB (4.17 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

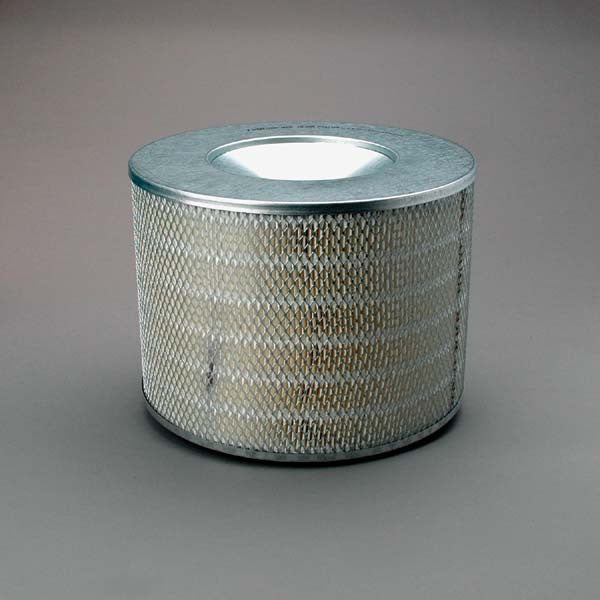

Intake Air Filter Element
