LAF925 | Luber-Finer | OFS # 97-22-0976
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 9.65 IN (245.11 MM)
Outer Diameter, Bottom: 9.65 IN (245.11 MM)
Inner Diameter, Top: 5.25 IN (133.35 MM)
Inner Diameter, Bottom:
Length: 15.57 IN (395.48 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN ENDS
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.20 LB (2.81 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

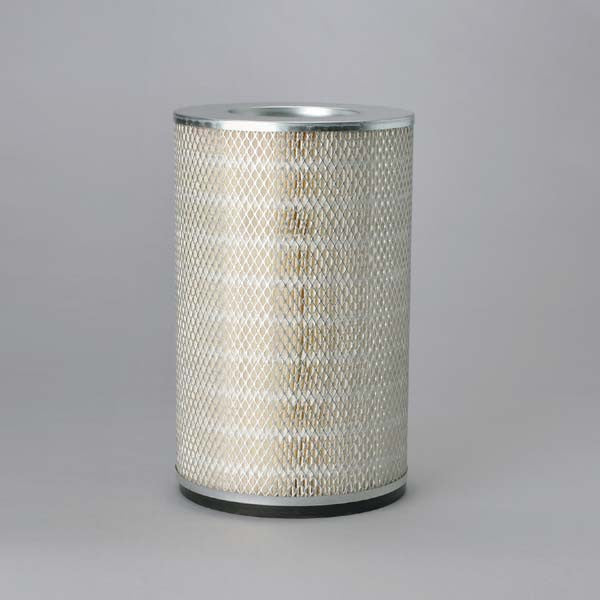

Intake Air Filter Element
