LAF926 | Luber-Finer | OFS # 97-22-0645
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 175 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 9.10 IN (231.14 MM)
Outer Diameter, Bottom: 9.10 IN (231.14 MM)
Inner Diameter, Top: 4.79 IN (121.67 MM)
Inner Diameter, Bottom: 0.38 IN (9.65 MM)
Length: 17.11 IN (434.59 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE W BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 7.00 LB (3.18 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

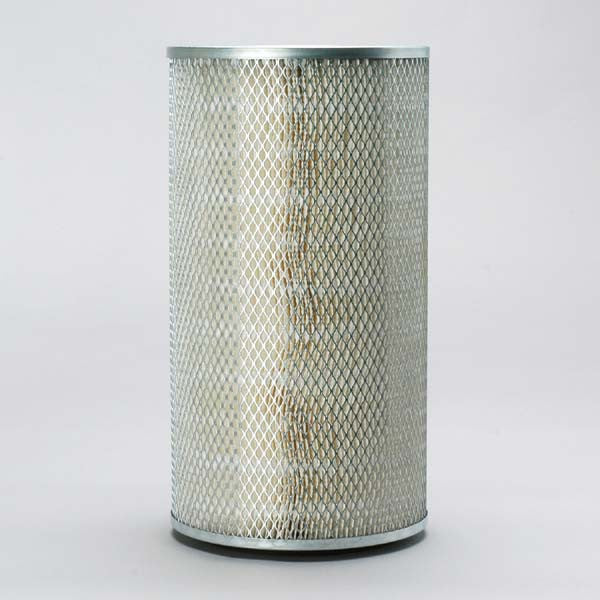

Intake Air Filter Element
