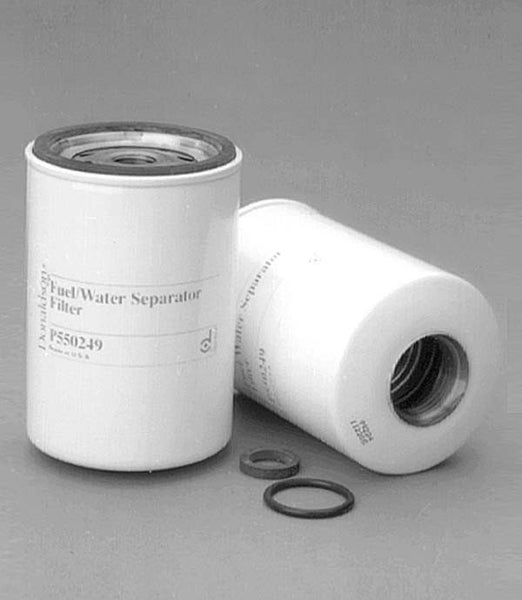

LFF6338 | Luber-Finer | Fuel/Water Separator | OFS # 97-28-0724

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: SPIN-ON WITH SENSOR PORT

Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)

Outer Diameter, Bottom: 3.05 IN (77.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 4.51 IN (114.55 MM)

Thread: M16 X 1.5

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN / BOLT H

Packaging Specifications
Number per Carton: 1

Carton Weight: 12.10 LB (5.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
