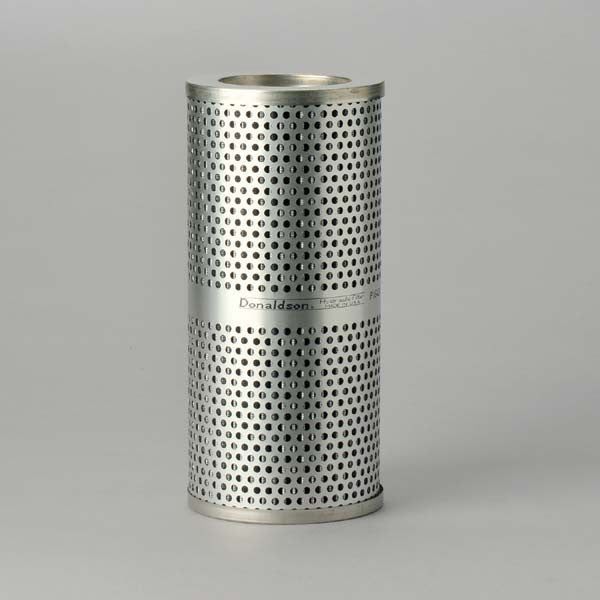

LH5461 | Luber-Finer | OFS # 97-01-1002

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.10 IN (129.54 MM)

Outer Diameter, Bottom: 5.10 IN (129.54 MM)

Inner Diameter, Top: 3.35 IN (85.09 MM)

Inner Diameter, Bottom: 3.35 IN (85.09 MM)

Length: 11.01 IN (279.65 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 15.00 LB (6.80 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
