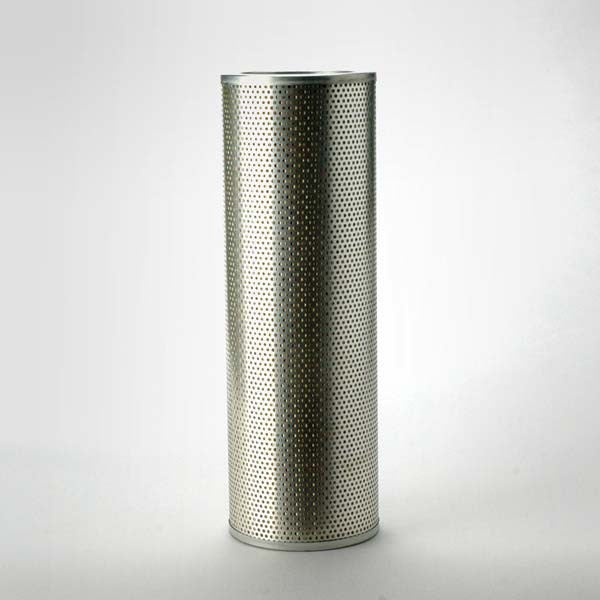

LH8544 | Luber-Finer | OFS # 97-01-0969
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.91 IN (150.11 MM)
Outer Diameter, Bottom: 5.91 IN (150.11 MM)
Inner Diameter, Top: 4.33 IN (109.98 MM)
Inner Diameter, Bottom: 4.33 IN (109.98 MM)
Length: 17.75 IN (450.85 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 5.10 LB (2.31 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
