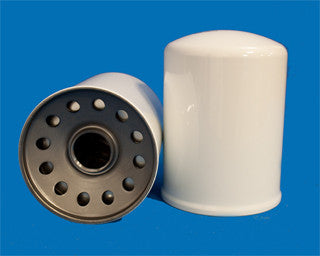

848101076 | Mp Filtri | Spin-On Element | OFS # 97-25-0123

SPIN-ON ELEMENT Spin-On Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: 11

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 200 F.

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: FLOW RATE - 40 GPM

Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)

Outer Diameter, Bottom: 5.06 IN (128.52 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 7.00 IN (177.80 MM)

Thread: 1 1/4"-11 BSP

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight 15.00 LB (6.80 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
