CSG150A06A | MP FILTRI | OFS # 97-F7500-8K6B
AVAILABILITY - Usually ships in 24-48 hours
Performance Data
Micron Rating: 6.00 ABSOLUTE
Beta Rating: B6 = 200
Collapse Pressure Rating: 100 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)
Outer Diameter, Bottom: 5.06 IN (128.52 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 11.00 IN (279.40 MM)
Thread: 1 1/2"-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.00 LB
CROSS REFERENCE:
# 97-25-1141
OFS # 97-F7500-8K6B

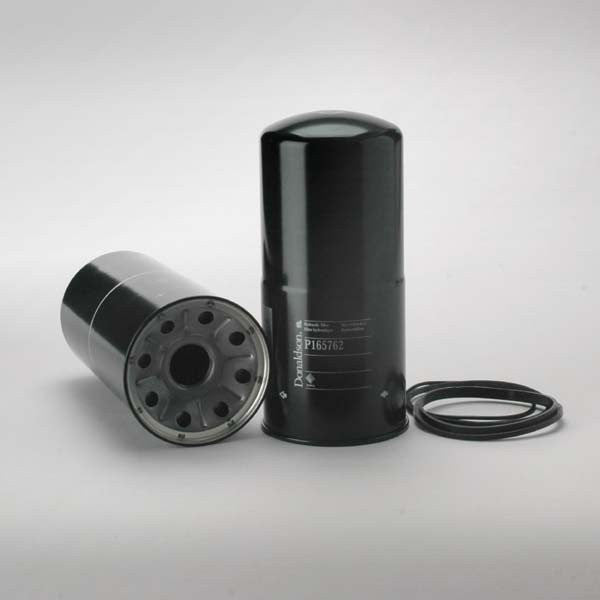

Compatibility List For DONALDSON P165762
| Replaces | Description |
| 0180MA003BN | HYD FLTR DONALDSON REPLACEMENT FOR HYDAC/HYCON 0180MA003BN |
| 0180MA005BN | HYD FLTR DONALDSON REPLACEMENT FOR HYDAC/HYCON 0180MA005BN |
| 020928 | HYD FLTR DONALDSON REPLACEMENT FOR LOESING 020928 |
| 12206090 | HYD FLTR DONALDSON REPLACEMENT FOR VOLVO 12206090 |
| 153408A | HYD FLTR DONALDSON REPLACEMENT FOR CHARLES MACHINE 153408A |
| 153408B | HYD FLTR DONALDSON REPLACEMENT FOR DITCH WITCH 153408B |
| 1810005 | HYD FLTR DONALDSON REPLACEMENT FOR ALLISON 1810005 |
| 1847 | HYD FLTR DONALDSON REPLACEMENT FOR NAPA 1847 |
| 210466 | HYD FLTR DONALDSON REPLACEMENT FOR BELL 210466 |
| 28403 | HYD FLTR DONALDSON REPLACEMENT FOR CMI 28403 |
| 284501 | HYD FLTR DONALDSON REPLACEMENT FOR CMI 284501 |
| 36784593 | HYD FLTR DONALDSON REPLACEMENT FOR INGERSOLL RAND 36784593 |
| 5002512 | HYD FLTR DONALDSON REPLACEMENT FOR EATON 5002512 |
| 51608503 | HYD FLTR DONALDSON REPLACEMENT FOR INGERSOLL RAND 51608503 |
| 51847 | HYD FLTR DONALDSON REPLACEMENT FOR WIX 51847 |
| 57804239 | HYD FLTR DONALDSON REPLACEMENT FOR INGERSOLL RAND 57804239 |
| 59124677 | HYD FLTR DONALDSON REPLACEMENT FOR INGERSOLL RAND 59124677 |
| 59124677 | HYD FLTR DONALDSON REPLACEMENT FOR SKYJACK 59124677 |
| 59879221 | HYD FLTR DONALDSON REPLACEMENT FOR INGERSOLL RAND 59879221 |
| 603M | HYD FLTR DONALDSON REPLACEMENT FOR NORMAN ULTRAPOROUS 603M |
| 605599 | HYD FLTR DONALDSON REPLACEMENT FOR MARINE TRAVELIFT, INC. 605599 |
| 605599 | HYD FLTR DONALDSON REPLACEMENT FOR SHUTTLELIFT INC 605599 |
| 606M | HYD FLTR DONALDSON REPLACEMENT FOR NORMAN ULTRAPOROUS 606M |
| 687260 | HYD FLTR DONALDSON REPLACEMENT FOR UNITED CENTRAL INDUSTRIAL SUPP 687260 |
| 710202 | HYD FLTR DONALDSON REPLACEMENT FOR AG CHEM EQUIPMENT 710202 |
| 750083UMSF | HYD FLTR DONALDSON REPLACEMENT FOR TRIBOGUARD 750083UMSF |
| 80933120 | HYD FLTR DONALDSON REPLACEMENT FOR JLG 80933120 |
| 85847 | HYD FLTR DONALDSON REPLACEMENT FOR CARQUEST 85847 |
| 8T5549 | HYD FLTR DONALDSON REPLACEMENT FOR CATERPILLAR 8T5549 |
| 932037 | HYD FLTR DONALDSON REPLACEMENT FOR PARKER 932037 |
| 932073 | HYD FLTR DONALDSON REPLACEMENT FOR PARKER 932073 |
| 932079 | HYD FLTR DONALDSON REPLACEMENT FOR PARKER 932079 |
| 9576P165762 | HYD FLTR DONALDSON REPLACEMENT FOR FORD 9576P165762 |
| 9U6983 | HYD FLTR DONALDSON REPLACEMENT FOR CATERPILLAR 9U6983 |
| A152G03 | HYD FLTR DONALDSON REPLACEMENT FOR FILTREC A152G03 |
| A152G06 | HYD FLTR DONALDSON REPLACEMENT FOR FILTREC A152G06 |
| A152G06 | HYD FLTR DONALDSON REPLACEMENT FOR MAIN FILTER A152G06 |
| AFS51103 | HYD FLTR DONALDSON REPLACEMENT FOR AIR HYDRAULIC SYSTEMS AFS51103 |
| AFS51106 | HYD FLTR DONALDSON REPLACEMENT FOR AIR HYDRAULIC SYSTEMS AFS51106 |
| AG710202 | HYD FLTR DONALDSON REPLACEMENT FOR AG CHEM EQUIPMENT AG710202 |
| BT8422MPG | HYD FLTR DONALDSON REPLACEMENT FOR BALDWIN BT8422MPG |
| CFG150A06A | HYD FLTR DONALDSON REPLACEMENT FOR MP FILTRI CFG150A06A |
| CSG150A03A | HYD FLTR DONALDSON REPLACEMENT FOR MP FILTRI CSG150A03A |
| CSG150A06A | HYD FLTR DONALDSON REPLACEMENT FOR MP FILTRI CSG150A06A |
| DNEHF7832 | HYD FLTR DONALDSON REPLACEMENT FOR FREIGHTLINER DNEHF7832 |
| DNP167832 | HYD FLTR DONALDSON REPLACEMENT FOR FREIGHTLINER DNP167832 |
| E0211B2R03 | HYD FLTR DONALDSON REPLACEMENT FOR WESTERN FILTER E0211B2R03 |
| E0211B2R05 | HYD FLTR DONALDSON REPLACEMENT FOR WESTERN FILTER E0211B2R05 |
| ESF22NFB | HYD FLTR DONALDSON REPLACEMENT FOR UFI ESF22NFB |
| F439069 | HYD FLTR DONALDSON REPLACEMENT FOR CASE/CASE IH F439069 |
| F4E070GCB | HYD FLTR DONALDSON REPLACEMENT FOR PTI F4E070GCB |
| F4E070HCB | HYD FLTR DONALDSON REPLACEMENT FOR PTI F4E070HCB |
| F4E071GCB | HYD FLTR DONALDSON REPLACEMENT FOR PTI F4E071GCB |
| F4E071HCB | HYD FLTR DONALDSON REPLACEMENT FOR PTI F4E071HCB |
| F4F070GDB | HYD FLTR DONALDSON REPLACEMENT FOR PTI F4F070GDB |
| F4F070HCB | HYD FLTR DONALDSON REPLACEMENT FOR PTI F4F070HCB |
| FC1068 | HYD FLTR DONALDSON REPLACEMENT FOR FLUID CONTROL SERVICES FC1068 |
| FCAF | HYD FLTR DONALDSON REPLACEMENT FOR DES CASE FCAF |
| FCBF | HYD FLTR DONALDSON REPLACEMENT FOR DES CASE FCBF |
| FPD0201047 | HYD FLTR DONALDSON REPLACEMENT FOR FPS FPD0201047 |
| FPE7003G | HYD FLTR DONALDSON REPLACEMENT FOR FPC FPE7003G |
| FPE7005G | HYD FLTR DONALDSON REPLACEMENT FOR FPC FPE7005G |
| H439069 | HYD FLTR DONALDSON REPLACEMENT FOR CASE/CASE IH H439069 |
| H511105D261 | HYD FLTR DONALDSON REPLACEMENT FOR FLUITEK H511105D261 |
| H511105M261 | HYD FLTR DONALDSON REPLACEMENT FOR FLUITEK H511105M261 |
| H51112D26 | HYD FLTR DONALDSON REPLACEMENT FOR FLUITEK H51112D26 |
| H51112M26 | HYD FLTR DONALDSON REPLACEMENT FOR FLUITEK H51112M26 |
| HC7500FKP8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC7500FKP8H |
| HC7500SDN8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC7500SDN8H |
| HC7500SDP8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC7500SDP8H |
| HC7500SKN8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC7500SKN8H |
| HC7500SKP8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC7500SKP8H |
| HC7500SUN8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC7500SUN8H |
| HC7500SUP8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC7500SUP8H |
| HC9500SUP8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL HC9500SUP8H |
| HF0670700 | HYD FLTR DONALDSON REPLACEMENT FOR AG CHEM EQUIPMENT HF0670700 |
| HF165762 | HYD FLTR DONALDSON REPLACEMENT FOR VMC HF165762 |
| HF167832 | HYD FLTR DONALDSON REPLACEMENT FOR VMC HF167832 |
| HF6704 | HYD FLTR DONALDSON REPLACEMENT FOR FLEETGUARD HF6704 |
| HF6707 | HYD FLTR DONALDSON REPLACEMENT FOR FLEETGUARD HF6707 |
| HF6776 | HYD FLTR DONALDSON REPLACEMENT FOR FLEETGUARD HF6776 |
| HF6778 | HYD FLTR DONALDSON REPLACEMENT FOR FLEETGUARD HF6778 |
| HF740 | HYD FLTR DONALDSON REPLACEMENT FOR HASTINGS HF740 |
| HP75L83MB | HYD FLTR DONALDSON REPLACEMENT FOR HY PRO HP75L83MB |
| HP75L86MB | HYD FLTR DONALDSON REPLACEMENT FOR HY PRO HP75L86MB |
| KL580011 | HYD FLTR DONALDSON REPLACEMENT FOR KELTEC KL580011 |
| LFH4989 | HYD FLTR DONALDSON REPLACEMENT FOR LUBER-FINER LFH4989 |
| LFH4997 | HYD FLTR DONALDSON REPLACEMENT FOR LUBER-FINER LFH4997 |
| LFH50113 | HYD FLTR DONALDSON REPLACEMENT FOR LUBER-FINER LFH50113 |
| LSP14 | HYD FLTR DONALDSON REPLACEMENT FOR HEIL LSP14 |
| MC7500SKN8H | HYD FLTR DONALDSON REPLACEMENT FOR PALL MC7500SKN8H |
| MEE160105BN2 | HYD FLTR DONALDSON REPLACEMENT FOR HYDAC/HYCON MEE160105BN2 |
| MFE160103BN2 | HYD FLTR DONALDSON REPLACEMENT FOR HYDAC/HYCON MFE160103BN2 |
| MFE160105BN2 | HYD FLTR DONALDSON REPLACEMENT FOR HYDAC/HYCON MFE160105BN2 |
| MFE18003BN2 | HYD FLTR DONALDSON REPLACEMENT FOR HYDAC/HYCON MFE18003BN2 |
| MFE18005BN2 | HYD FLTR DONALDSON REPLACEMENT FOR HYDAC/HYCON MFE18005BN2 |
| P564055 | HYD FLTR DONALDSON REPLACEMENT FOR REPLACED BY P564055 |
| P6020 | HYD FLTR DONALDSON REPLACEMENT FOR DES CASE P6020 |
| P6021 | HYD FLTR DONALDSON REPLACEMENT FOR DES CASE P6021 |
| P7254 | HYD FLTR DONALDSON REPLACEMENT FOR FRAM P7254 |
| PR3962 | HYD FLTR DONALDSON REPLACEMENT FOR PARKER PR3962 |
| R750H0803A | HYD FLTR DONALDSON REPLACEMENT FOR FAIREY ARLON R750H0803A |
| R750H0806A | HYD FLTR DONALDSON REPLACEMENT FOR FAIREY ARLON R750H0806A |
| SBF75008S3B | HYD FLTR DONALDSON REPLACEMENT FOR SCHROEDER SBF75008S3B |
| SBF75008Z3B | HYD FLTR DONALDSON REPLACEMENT FOR SCHROEDER SBF75008Z3B |
| SBF75008Z5B | HYD FLTR DONALDSON REPLACEMENT FOR SCHROEDER SBF75008Z5B |
| SF6703MG2 | HYD FLTR DONALDSON REPLACEMENT FOR STAUFF SF6703MG2 |
| SF6704MG2 | HYD FLTR DONALDSON REPLACEMENT FOR STAUFF SF6704MG2 |
| SF6707 | HYD FLTR DONALDSON REPLACEMENT FOR STAUFF SF6707 |
| SH56754 | HYD FLTR DONALDSON REPLACEMENT FOR JURA FILTRATION SH56754 |
| SH56757 | HYD FLTR DONALDSON REPLACEMENT FOR JURA FILTRATION SH56757 |
| SPE60BTA3 | HYD FLTR DONALDSON REPLACEMENT FOR LHA SPE60BTA3 |
| SPH20101 | HYD FLTR DONALDSON REPLACEMENT FOR SF-Filter SPH20101 |
| SPH20103 | HYD FLTR DONALDSON REPLACEMENT FOR SF-Filter SPH20103 |
| ST6704 | HYD FLTR DONALDSON REPLACEMENT FOR SEPARATION TECHNOLOGIES ST6704 |
| ST6707 | HYD FLTR DONALDSON REPLACEMENT FOR SEPARATION TECHNOLOGIES ST6707 |
| V0211B2R03 | HYD FLTR DONALDSON REPLACEMENT FOR EATON V0211B2R03 |
| V0211B2R03 | HYD FLTR DONALDSON REPLACEMENT FOR VICKERS V0211B2R03 |
| V0211B2R03S | HYD FLTR DONALDSON REPLACEMENT FOR EATON V0211B2R03S |
| V0211B2R05 | HYD FLTR DONALDSON REPLACEMENT FOR VICKERS V0211B2R05 |
| V0211B2V03 | HYD FLTR DONALDSON REPLACEMENT FOR VICKERS V0211B2V03 |
| V0211B2V05 | HYD FLTR DONALDSON REPLACEMENT FOR VICKERS V0211B2V05 |
| ZLE03 | HYD FLTR DONALDSON REPLACEMENT FOR ZINGA ZLE03 |
| ZLE03P | HYD FLTR DONALDSON REPLACEMENT FOR ZINGA ZLE03P |
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
