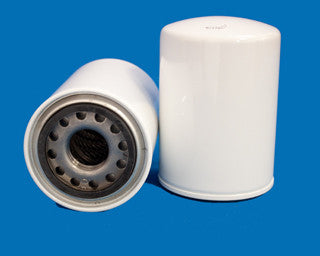

CSG50A10A | Mp Filtri | OFS # 97-25-0331

Performance Data

Micron Rating: 7.00 ABSOLUTE

Beta Rating: 200

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.70 IN (93.98 MM)

Outer Diameter, Bottom: 3.70 IN (93.98 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.25 IN (133.35 MM)

Thread: 1"-12 UNF

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight 14.00 LB (6.35 KG)
