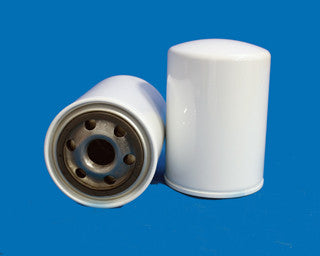

CSG50P05 | Mp Filtri | Spin-On Element | OFS # 97-25-0053

SPIN-ON ELEMENT Spin-On Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 275 F.

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.70 IN (93.98 MM)

Outer Diameter, Bottom: 3.70 IN (93.98 MM)

Inner Diameter, Top: 1.00 IN (25.40 MM)

Inner Diameter, Bottom:

Length: 5.25 IN (133.35 MM)

Thread: 1"-12 UNF

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: N/A

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight 15.00 LB (6.80 KG)
