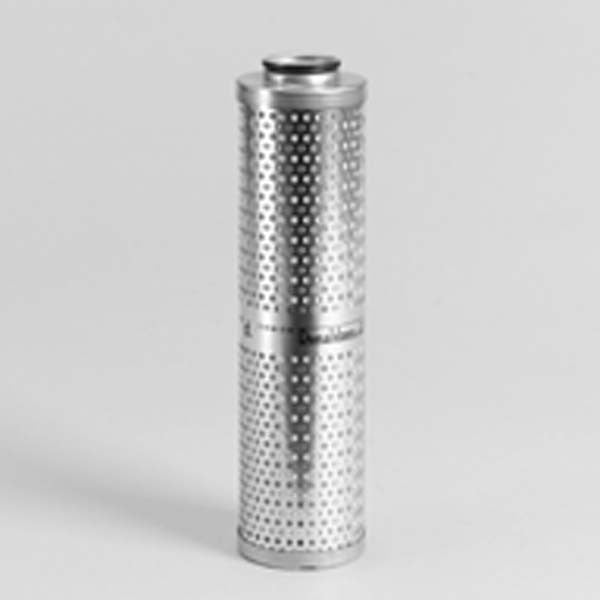

Mp Filtri | MP3822 | Donaldson Replacement Filter Element | OFS # 97-28-5120

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.44 IN (61.98 MM)

Outer Diameter, Bottom: 2.44 IN (61.98 MM)

Inner Diameter, Top: 1.02 IN (25.91 MM)

Inner Diameter, Bottom:

Length: 9.25 IN (234.95 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 0.90 LB (0.41 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
