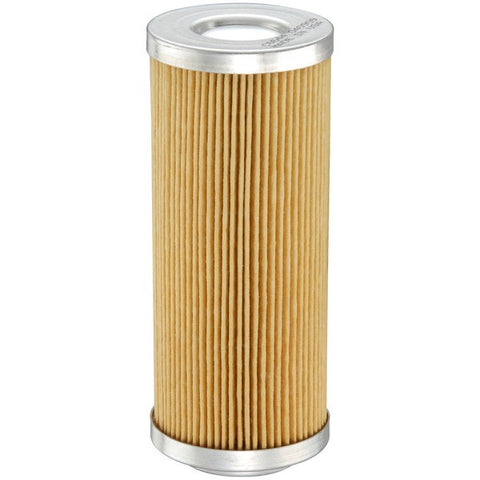

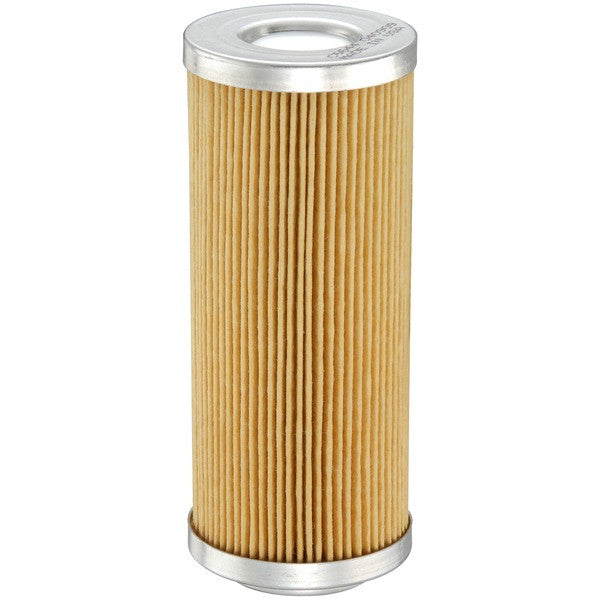

MP6047 | Mp Filtri | Army-Navy Element | OFS # 97-02-0004

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 1.75 IN (44.45 MM)

Outer Diameter, Bottom: 1.75 IN (44.45 MM)

Inner Diameter, Top: 1.02 IN (25.91 MM)

Inner Diameter, Bottom:

Length: 4.43 IN (112.52 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: ALUMINUM

Center Tube: SS SPRING

Type of Media: PAPER

Filter Area: 126 SQ.IN.

Plating: NONE

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
