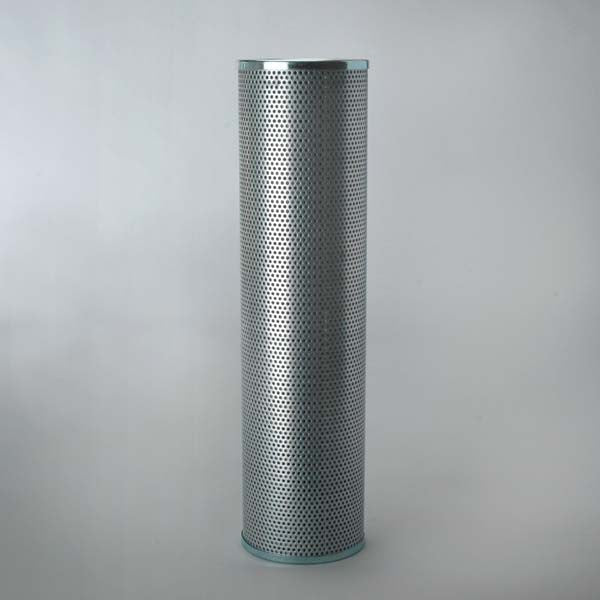

MR6304P10A | Mp Filtri | Pleated Microglass Element | OFS # 97-05-0764

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10=200

Collapse Pressure Rating: 145 PSID

Maximum Temperature: 275 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 50 PSID

Additional Notes: SINGLE OPEN END WITH BOLT HOLE (B/H)

Dimensional Specifications
Outer Diameter, Top: 4.96 IN (125.98 MM)

Outer Diameter, Bottom: 4.96 IN (125.98 MM)

Inner Diameter, Top: 3.62 IN (91.95 MM)

Inner Diameter, Bottom: 0.41 IN (10.41 MM)

Length: 18.90 IN (480.06 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: NONE

Type of Media: MICROGLASS

Filter Area: 1507 SQ.IN.

Plating: ZINC PLATED

Outer Jacket: YES

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
