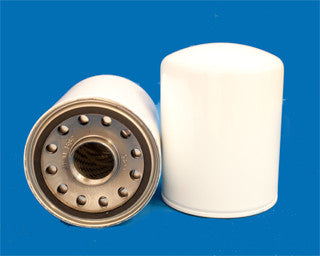

2020300 | Marion-Gfk, Inc. | OFS # 97-25-0018
Performance Data
Micron Rating: 10.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 300 PSI
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
(A) Outer Diameter, Top: 5.06 IN (128.52 MM)
(B) Outer Diameter, Bottom: 5.06 IN (128.52 MM)
(C) Inner Diameter, Top:
(D) Inner Diameter, Bottom:
(E) Length: 7.00 IN (177.80 MM)
(F) Thread: 1 1/2"-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTR0TIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 6
Carton Weight: 15.00 LB (6.80 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangeable with original manufacture parts, Names and part # used for cross reference only.***
