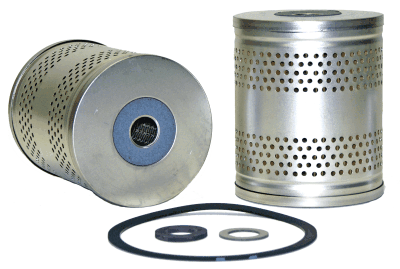

1004 | NAPA | OFS # 97-01-0861

Usually ships in 24-48 hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  80 PSI

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE>IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.94 IN   (100.08 MM)

Outer Diameter, Bottom:  3.94 IN   (100.08 MM)

Inner Diameter, Top:  0.72 IN   (18.29 MM)

Inner Diameter, Bottom:  0.72 IN   (18.29 MM)

Length:  4.81 IN   (122.17 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  0.80 LB   (0.36 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
