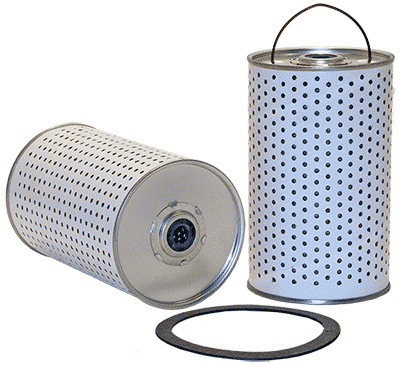

1005 | NAPA | DEPTH TYPE ELEMENT | OFS # 97-10-0161

In Stock

Performance Data
Micron Rating:  0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  25 PSID

Dimensional Specifications
Outer Diameter, Top:  3.97 IN   (100.84 MM)

Outer Diameter, Bottom:  3.97 IN   (100.84 MM)

Inner Diameter, Top:  0.71 IN   (18.03 MM)

Inner Diameter, Bottom:  0.71 IN   (18.03 MM)

Length:  6.11 IN   (155.19 MM)

Thread:  NONE

Physical Specifications
Handle:  YES

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
