A545 | Purflux | OFS # 97-22-0866

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 6.33 IN (160.78 MM)

Outer Diameter, Bottom: 5.25 IN (133.35 MM)

Inner Diameter, Top: 0.63 IN (16.00 MM)

Inner Diameter, Bottom: 3.63 IN (92.20 MM)

Length: 15.38 IN (390.65 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

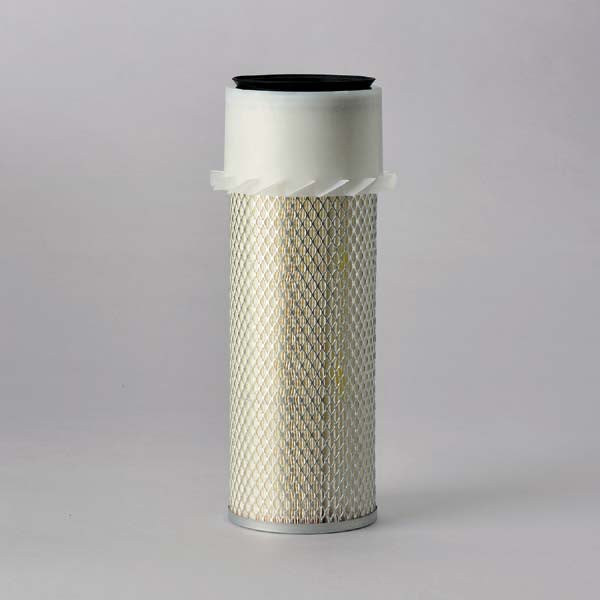

Intake Air Filter Element
