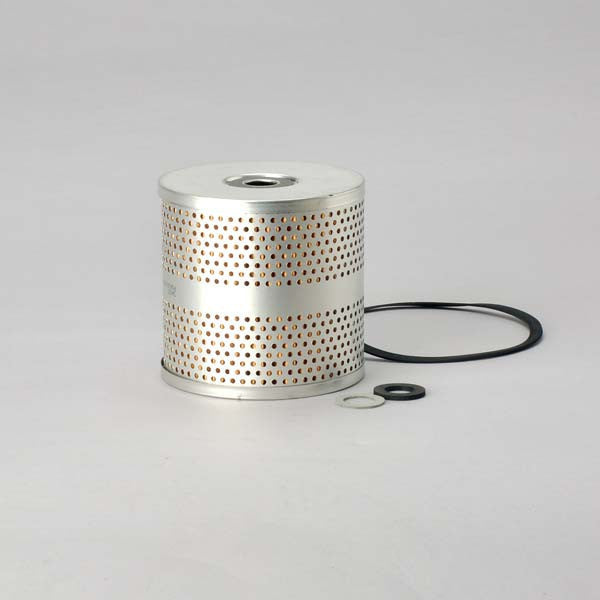

L811 | Purflux | OFS # 97-01-0852

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 18.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.59 IN (116.59 MM)

Outer Diameter, Bottom: 4.59 IN (116.59 MM)

Inner Diameter, Top: 0.75 IN (19.05 MM)

Inner Diameter, Bottom:

Length: 5.87 IN (149.10 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 12

Carton Weight: 8.90 LB (4.04 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
