LS778 | Purflux | OFS # 97-25-0317

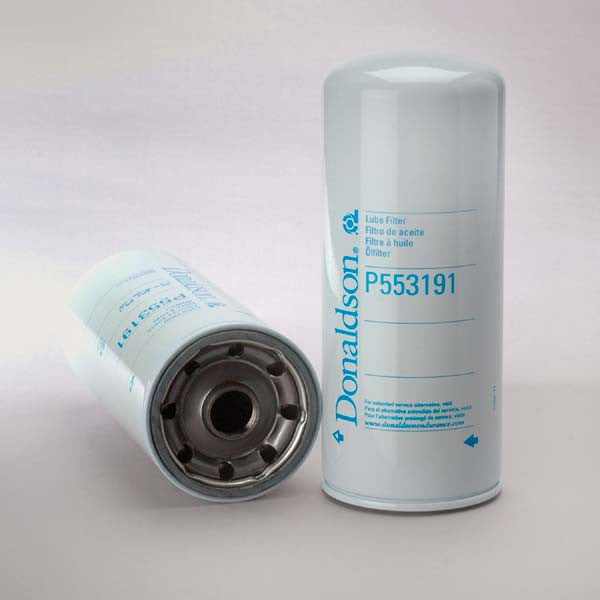

Spin-On Filter Element Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00

Beta Rating:  N/A

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  4.24 IN   (107.70 MM)

Outer Diameter, Bottom:  4.24 IN   (107.70 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  10.39 IN   (263.91 MM)

Thread:  1-1/8-16

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  29.10 LB   (13.20 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
