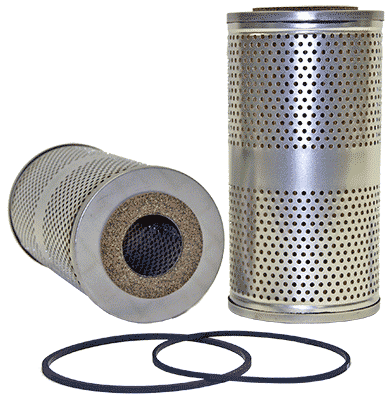

R2| Purolator | Pleated Paper Element | OFS # 97-28-0359
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.52 IN (114.81 MM)
Outer Diameter, Bottom: 4.52 IN (114.81 MM)
Inner Diameter, Top: 1.71 IN (43.43 MM)
Inner Diameter, Bottom: 1.71 IN (43.43 MM)
Length: 8.86 IN (225.04 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 14.40 LB (6.53 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
