QSA142| Quaker State | OFS # 97-22-0691

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  8.08 IN   (205.23 MM)

Outer Diameter, Bottom:  8.08 IN   (205.23 MM)

Inner Diameter, Top:  5.77 IN   (146.56 MM)

Inner Diameter, Bottom:  0.25 IN   (6.35 MM)

Length:  4.00 IN   (101.60 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES

Configuration:  SINGLE W BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  2.10 LB   (0.95 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

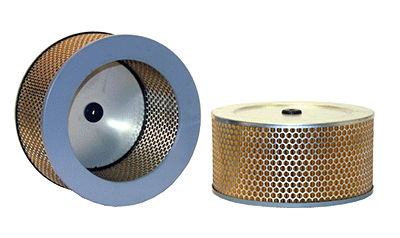

Intake Air Filter Element
