QSA234| Quaker State | OFS # 97-22-0752

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  9.06 IN   (230.12 MM)

Outer Diameter, Bottom:  6.28 IN   (159.51 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:  4.62 IN   (117.35 MM)

Length:  16.15 IN   (410.21 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN / FLANGE

Packaging Specifications
Number per Carton:  1

Carton Weight:  5.20 LB   (2.36 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

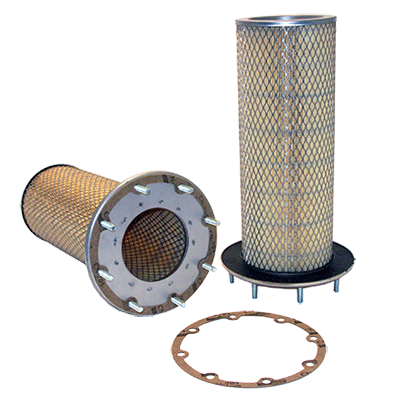

Intake Air Filter Element
