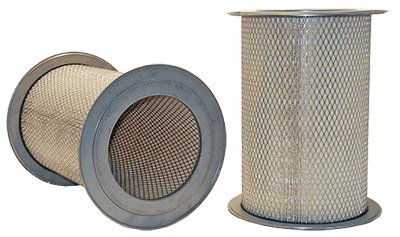

QSA250H| Quaker State | OFS # 97-22-0768

Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  12.08 IN   (306.83 MM)

Outer Diameter, Bottom:  12.08 IN   (306.83 MM)

Inner Diameter, Top:  7.94 IN   (201.68 MM)

Inner Diameter, Bottom:

Length:  16.39 IN   (416.31 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  NONE

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  8.20 LB   (3.72 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
