QSA268| Quaker State | OFS # 97-22-0644

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  12.75 IN   (323.85 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:  5.94 IN   (150.88 MM)

Inner Diameter, Bottom:  8.34 IN   (211.84 MM)

Length:  11.50 IN   (292.10 MM)

Thread:

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight:  7.50 LB   (3.40 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

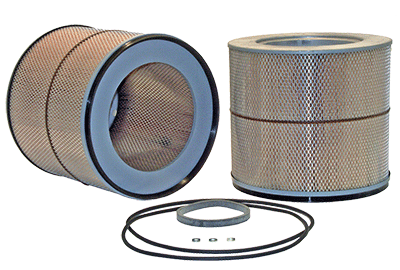

Intake Air Filter Element
