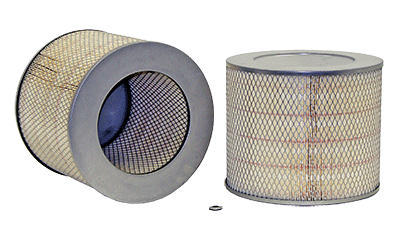

QSA269| Quaker State | OFS # 97-22-0598

Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  INSIDE->OUT

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  USED IN HEAVY DUTY APPLICATIONS.

Dimensional Specifications
Outer Diameter, Top:  12.08 IN   (306.83 MM)

Outer Diameter, Bottom:  12.08 IN   (306.83 MM)

Inner Diameter, Top:  7.73 IN   (196.34 MM)

Inner Diameter, Bottom:  0.54 IN   (13.72 MM)

Length:  10.06 IN   (255.52 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  NONE

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  GALVANIZED

Outer Jacket:  YES - METAL

Configuration:  SINGLE W BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  7.00 LB   (3.18 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
