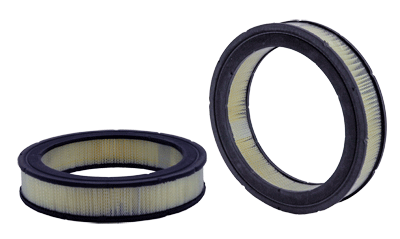

QSA2740| Quaker State | OFS # 97-28-1498

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  11.03 IN   (280.16 MM)

Outer Diameter, Bottom:  11.13 IN   (282.70 MM)

Inner Diameter, Top:  8.50 IN   (215.90 MM)

Inner Diameter, Bottom:

Length:  2.23 IN   (56.64 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:  PLASTISOL

Type of Endcap:  MOLDED

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  NONE - NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  15.40 LB   (6.99 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

Intake Air Filter Element
