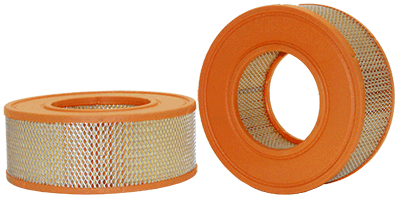

QSA3307| Quaker State | OFS # 97-22-0450

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  N/A

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  7.88 IN   (200.15 MM)

Outer Diameter, Bottom:  7.88 IN   (200.15 MM)

Inner Diameter, Top:  4.13 IN   (104.90 MM)

Inner Diameter, Bottom:  4.13 IN   (104.90 MM)

Length:  3.00 IN   (76.20 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  MOLDED

Type of Adhesive:  PLASTISOL

Type of Endcap:  MOLDED

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  NONE

Outer Jacket:  YES - METAL

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  6

Carton Weight:  9.00 LB   (4.08 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***

Intake Air Filter Element
