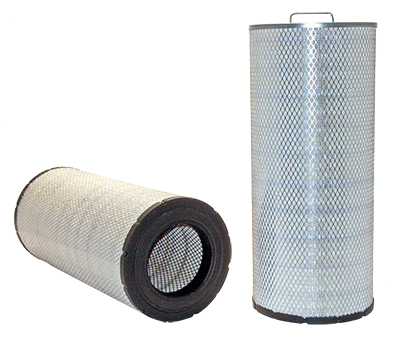

542754 | WIX | Radial Seal Air Intake Element | OFS # 97-36-6224

Performance Data
Micron Rating: 15.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 9.28 IN (235.71 MM)

Outer Diameter, Bottom: 9.28 IN (235.71 MM)

Inner Diameter, Top: 5.16 IN (131.06 MM)

Inner Diameter, Bottom:

Length: 21.88 IN (555.75 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 7.00 LB (3.18 KG)
