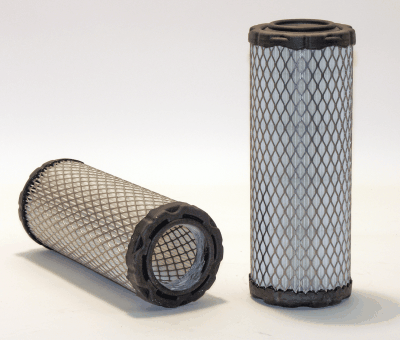

546439 | WIX | Primary Air Element, Radial Seal | OFS # 97-28-4544

Lead Time: Please Call

Performance Data
Micron Rating: 0.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.16 IN (105.66 MM)

Outer Diameter, Bottom: 4.16 IN (105.66 MM)

Inner Diameter, Top: 2.36 IN (59.94 MM)

Inner Diameter, Bottom: 2.36 IN (59.94 MM)

Length: 10.43 IN (264.92 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive:

Type of Endcap: MOLDED PLASTISOL

Center Tube:

Type of Media:

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)
