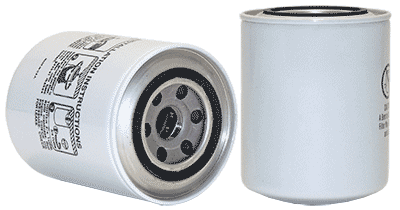

51318 | WIX | Spin-On Element | OFS # 97-25-0396

SPIN-ON ELEMENT Spin-On Element

Lead Time: Usually Ships In 24-28 Hours

12 per carton

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)

Outer Diameter, Bottom: 3.05 IN (77.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 4.57 IN (116.08 MM)

Thread: 3/4-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN SPIN-ON

Packaging Specifications
Number per Carton: 1

Carton Weight: 0.76 LB (0.34 KG)
