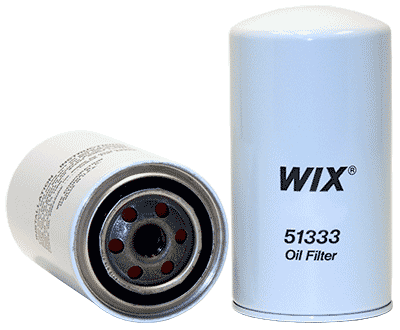

51333 | WIX | Spin-On Element | OFS # 97-28-0086

Lead Time: Usually Ships In 24-28 Hours

MIN. ORDER REQUIREMENT 3

Performance Data
Micron Rating: 20.00 NOMNAL

Beta Rating: N/A

Collapse Pressure Rating:

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.69 IN (93.73 MM)

Outer Diameter, Bottom: 3.69 IN (93.73 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.38 IN (136.65 MM)

Thread: 3/4-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

unit Weight:  1.5 LB
