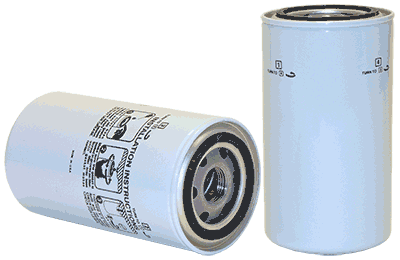

51461 | WIX | Spin-On Element | OFS # 97-25-0380
SPIN-ON ELEMENT Spin-On Element
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 23.00
Beta Rating: N/A BPV 13.49
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.78 IN (96.01 MM)
Outer Diameter, Bottom: 3.78 IN (96.01 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 6.88 IN (174.75 MM)
Thread: 1-12 UNF2B
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 16.70 LB (7.57 KG)
