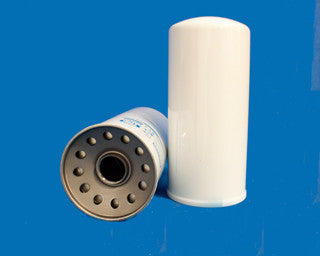

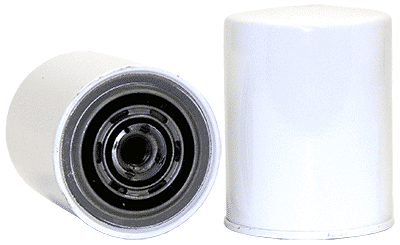

FPE7010W | Filter Products | Water Removal Spin-On Element | OFS # 97-25-0215

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 80 PSID

Maximum Temperature: 200 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)

Outer Diameter, Bottom: 5.06 IN (128.52 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 11.00 IN (279.40 MM)

Thread: 1 1/2"-16

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER/CHEMICAL

Filter Area: 668 SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 6

Carton Weight 19.00 LB (8.62 KG) | All Online Filter Supply | replacement | parts are | equivalent | to or| interchangeable | with original manufacture parts | Names and part # used for cross reference only. |
