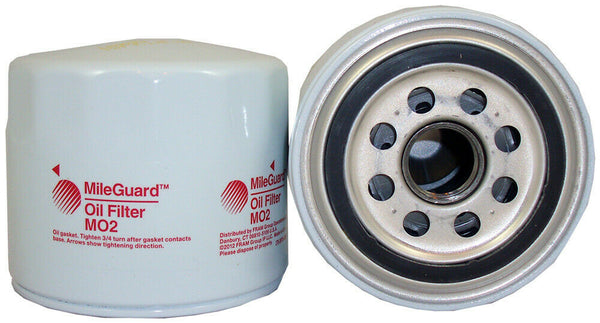

M02 | Mileguard | Spin-On Oil Filter | OFS # 97-25-0443
***Image may vary***

M02 | Mileguard | Spin-On Oil Filter | OFS # 97-25-0443

  • Save $4.10
In Stock



Individual Filters Available

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A BPV 7.98

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  3.69 IN   (93.73 MM)

Outer Diameter, Bottom:  3.69 IN   (93.73 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  3.85 IN   (97.79 MM)

Thread:  M22 X 1.5-6H



Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE OPEN SPIN-ON



Packaging Specifications
Number per Carton:  1

Carton Weight:  0.716 LB   (0.4875 KG)



**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Replacement filters AC-Delco PF1250 AC-Delco PF1250CL AC-Delco PF1250FCL AC-Delco PF26 ALLIANCE ABP/N10G-LF3681 AMSOIL ASF11 AMSOIL EAO11 ATLAS F-20 AUTOEDGE AL2 Autolite for Oil Filters AL2 AUTOPAR FE336 Baldwin B329 BIG A 92372 Bosch 3410 Bosch 72212 CAM2 C4651 Canadian Tire 17-1738-2 CARCARE IOF2 CARQUEST 84899 CARQUEST 85372 CARQUEST B4651 CASITE CF110 CASTROL CAS2 CENEX CO820 Champion Laboratories PH26 Champion Laboratories PH820 CHRYSLER 4884899AB CHRYSLER 5038041AA CITGO C4651 CROSLAND 2010 DEFENSE DL2 DELPHI FX1008 DENSO 150-1014 DEUTSCH D407 Donaldson P550965 Econo Lube L24651 EVERGARD E4651 Filters Incorporated OF2 FIRESTONE TF-4651 FIRESTONE TF4651 FLAG C-2 Fleetguard LF16002 Fleetguard LF16214 Fleetguard LF3681 Flying F PH2AZ Ford F1AZ-6731-A Ford F1AZ-6731-BD Ford FL 820 Fram PH2 General Motors GM 19160693 General Motors GM 19160696 General Motors GM 89017527 GONHER GP68 GOODYEAR L4651 GRAND PRIX PH820 Grease Monkey GM24651 Grease Monkey GM4651 Group 7 V4651 HASTINGS LF110 HASTINGS LF612 HAVOLINE T-36 HENGST H10W18 JIFFY LUBE HL2 JIFFY LUBE JL4651 JIFFY LUBE L24651 K & N HP-2010 KENDALL K29 KRALINATOR L320 LEE LF-820 LUBER-FINER PH26 LUBER-FINER PH820 Magneti Marelli 1AMFL00006 Magneti Marelli 1AMFL00024 Mann ML 1006 Mann W920/16 Mazda AJ04-14-302B Mazda AJ57-14-302 Mazda AJTM-14-302 Mazda GY01-14-302B Mechanics Circle MOF 2 MERCURY 35-877761K01 MICROGARD MGL2 MIGHTY M4651 MILEGUARD MO2 MOBIL M1-210 MOBIL MO4651 MOPAR FE00336 MOPAR MO-899 Motor Trend ML2 MOTORCRAFT FL 820 MOTORCRAFT FL 820S NAPA 1372 NAPA 7899 Parts Master 61372 Parts Master 67899 Parts Plus PH820 PENNZOIL PZ-42 PERFORMAX PO-42 PHILLIPS 66 PO1372 POWER FLO SL24651 PRO-TEC 159 PRO/GAUGE PGO-4651 PROMOTIVE PH2500 PRONTO PO-2 Purolator L24651 Quaker State QS2 ROCKHILL 61372 ROVER 4137784 SECURITY SO-820 SERVICE 1 OF4651 SERVICE PRO M4651 SHELL SH36 SILVERLINE 21372 STP S2 SUNOCO O-35 SUPERTECH ST2 TRUST PH820 UNOCAL PF820 VALVOLINE VO105 VALVOLINE VO47 WALMI WS-2 WARNER PH820 Wix 51372 Wix 57899
