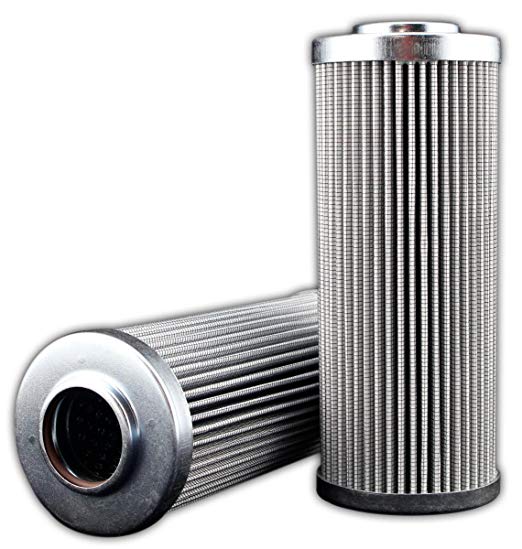

SE070C03B2 | Stauff Corp | Pleated Synthetic Element

Product Description

Hydraulic Canister Filter; Stauff Corp Industrial Pleated Synthetic Filter Elements are made up of the highest quality materials and premium medias to handle the specific needs for the harsh and unforgiving conditions in which these Stauff Corp, Pleated Synthetic Filter Elements function in. Stauff Corp Industrial Filters provide coverage for unique and often hard to find filters. This product line includes hydraulic filters, tank breather filters, oil and air separators and air filters for compressors, mobile oil filtration unit assemblies and other unique products to cover all your filter needs in the industrial world.

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating:  3.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Change-out Differential Pressure:  15 PSID

Dimensional Specifications
Outer Diameter, Top:  2.70 IN   (68.58 MM)

Outer Diameter, Bottom:  2.72 IN   (69.09 MM)

Inner Diameter, Top:  1.27 IN   (32.26 MM)

Inner Diameter, Bottom:

Length:  6.88 IN   (174.75 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:

Type of End-cap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  SYNTHETIC

Filter Area:  6.75" LONG PAPER

Plating:

Outer Jacket:  NONE

Configuration:

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.00 LB   (0.45 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
