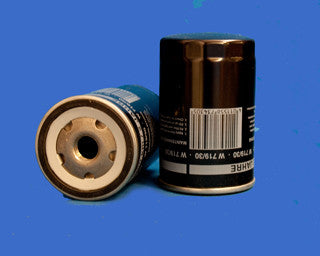

5098331096 - TEXTRON - OFS # 97-25-0353
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: 30 PSID BY-PASS VALVE
Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)
Outer Diameter, Bottom: 3.05 IN (77.47 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 4.57 IN (116.08 MM)
Thread: 3/4-16 UNF2B
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 12
Carton Weight: 11.00 LB (4.99 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
