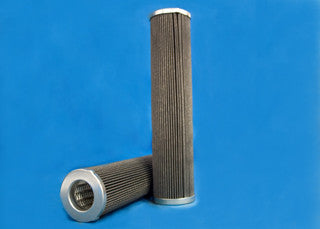

9640514114 - TEXTRON - OFS # 97-06-0510
Performance Data
Micron Rating: 60.00 ABSOLUTE
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 25 PSID
Dimensional Specifications
Outer Diameter, Top: 3.30 IN (83.82 MM)
Outer Diameter, Bottom: 3.30 IN (83.82 MM)
Inner Diameter, Top: 1.88 IN (47.75 MM)
Inner Diameter, Bottom:
Length: 14.60 IN (370.84 MM)
Thread:
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: 304 SS WIRE
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.30 LB (1.04 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
