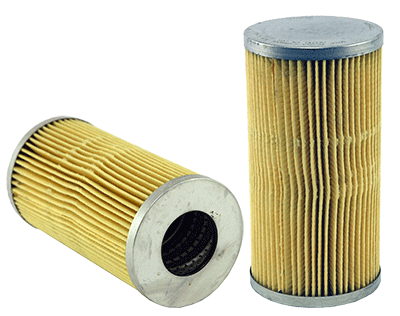

FR5010N - TEXTRON - OFS # 97-01-0298

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 10.00

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.00 IN (101.60 MM)

Outer Diameter, Bottom: 4.00 IN (101.60 MM)

Inner Diameter, Top: 2.02 IN (51.31 MM)

Inner Diameter, Bottom:

Length: 7.75 IN (196.85 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: 778.88 SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
