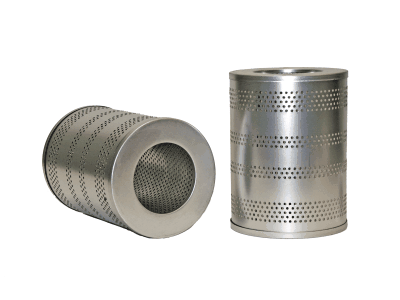

51437 | WIX | Pleated Paper Element | OFS # 97-01-0675

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.98 IN (151.89 MM)

Outer Diameter, Bottom: 5.98 IN (151.89 MM)

Inner Diameter, Top: 3.51 IN (89.15 MM)

Inner Diameter, Bottom: 3.51 IN (89.15 MM)

Length: 8.06 IN (204.72 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG)
