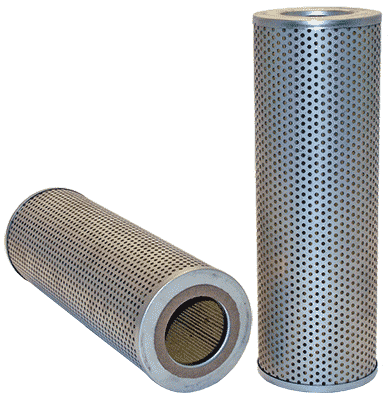

51526 | WIX | Pleated Paper Element | OFS # 97-01-0429
PLEATED PAPER ELEMENT
Lead Time: Usually Ships In 24-48 Hours
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 15.00 NOMINAL
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.39 IN (111.51 MM)
Outer Diameter, Bottom: 4.39 IN (111.51 MM)
Inner Diameter, Top: 2.44 IN (61.98 MM)
Length: 13.00 IN (330.20 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 16.00 LB (7.26 KG)
Click Here For WIX Filters Website To Confirm The Specifications
