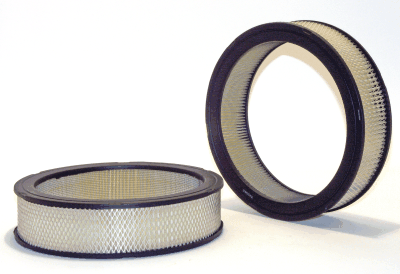

557131 | WIX | Pleated Paper Element | OFS # 97-01-0792

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 2.30 IN (58.42 MM)

Outer Diameter, Bottom: 2.30 IN (58.42 MM)

Inner Diameter, Top: 0.71 IN (18.03 MM)

Inner Diameter, Bottom: 0.71 IN (18.03 MM)

Length: 3.96 IN (100.58 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.00 LB (1.81 KG)
