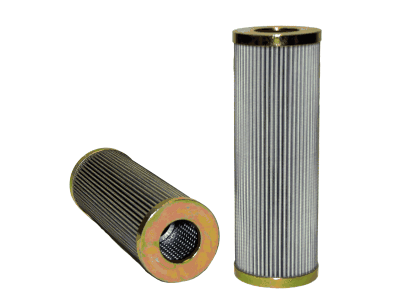

57157 | WIX | OFS # 97-F9701-9K3V

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3 = 200

Collapse Pressure Rating: 1000 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)

Outer Diameter, Bottom: 3.90 IN (99.06 MM)

Inner Diameter, Top: 1.60 IN (40.64 MM)

Inner Diameter, Bottom: 1.60 IN (40.64 MM)

Length: 9.10 IN (231.14 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 790 SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE - NONE

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 4.00 LB (1.81 KG)
