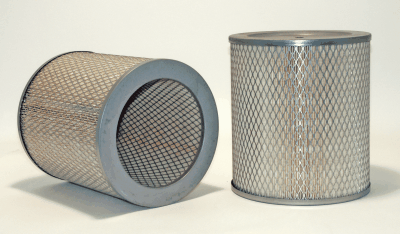

82420 | WIX | OFS # 97-22-0673

Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: INTEGRAL POST SEAL

Dimensional Specifications
Outer Diameter, Top: 9.00 IN (228.60 MM)

Outer Diameter, Bottom: 9.00 IN (228.60 MM)

Inner Diameter, Top: 0.44 IN (11.18 MM)

Inner Diameter, Bottom: 6.63 IN (168.40 MM)

Length: 10.06 IN (255.52 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: NONE

Configuration: SINGLE W BOLT HOLE

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.40 LB (1.54 KG)
