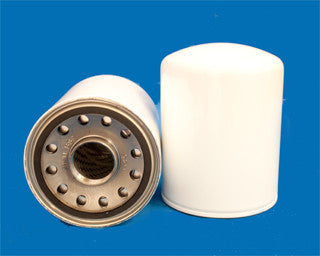

LE100 - ZINGA INDUSTRIES - OFS # 97-25-0273
Performance Data
Micron Rating: 149.00 ABSOLUTE
Beta Rating: N/A
Collapse Pressure Rating: 100 PSID
Maximum Temperature: 275 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: BURST PRESSURE = 300 PSI/20.6 BAR
Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)
Outer Diameter, Bottom: 5.06 IN (128.52 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 11.00 IN (279.40 MM)
Thread: 1 1/2"-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: 304 SS WIRE
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 6
Carton Weight: 19.00 LB (8.62 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
