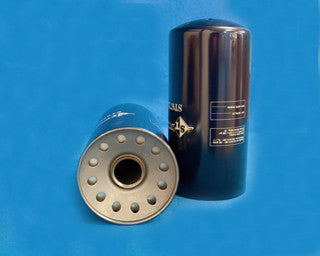

LE25 - ZINGA INDUSTRIES - OFS # 97-25-0311
Performance Data
Micron Rating: 25.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 100 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Additional Notes: RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE = 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.06 IN (128.52 MM)
Outer Diameter, Bottom: 5.06 IN (128.52 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 11.00 IN (279.40 MM)
Thread: 1 1/2"-16
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: ELECTROTIN PLATED
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 6
Carton Weight: 18.00 LB (8.16 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
