9693 | Crosland | OFS # 97-22-1059
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: N/A
Maximum Temperature: N/A
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 10.45 IN (265.43 MM)
Outer Diameter, Bottom: 8.70 IN (220.98 MM)
Inner Diameter, Top: 5.33 IN (135.38 MM)
Inner Diameter, Bottom: 0.88 IN (22.35 MM)
Length: 13.50 IN (342.90 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: N/A
Type of Endcap: PLATED STEEL
Center Tube: PLATEE STEEL
Type of Media: PAPER
Filter Area: N/A
Plating: N/A
Outer Jacket: NONE
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 6.00 LB (2.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

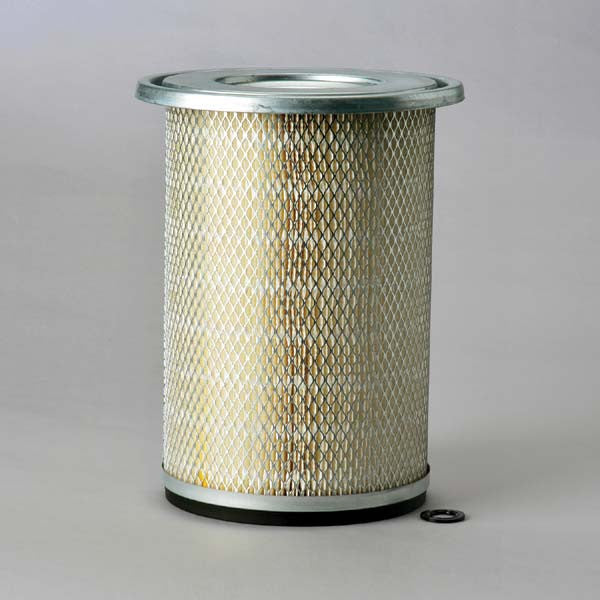

Intake Air Filter Element
